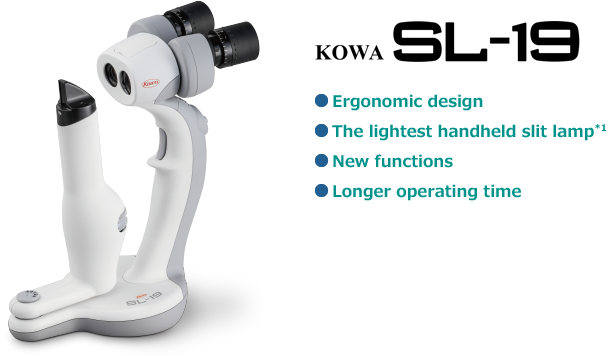

Smooth and roundish design aimed to reduce stress and mental strain of patients.
Easy fitting with trigger grip and optimized grip diameter.
By incorporating glass fiber reinforced resin, the weight was reduced.
The lighter device minimizes operator fatigue.
Background illumination simultaneously usable with slit lamp.(fig.1)
Blue light illumination button conveniently located on handle.(fig.2)
Continuously variable slit length. (1.5-12 mm)
Owing to an energy saving system design, the KOWA SL-19 has a continuous illumination time at maximum intensity for 360 minutes.
・When used with 3 x AA Ni-MH batteries. (1,900 mAh)
Head rest (fig.3)
Microscope | Angle of convergence | 13° |
---|---|---|
Magnification | 10X and 16X | |
Working distance | Approx. 100 mm (at 10X magnification) Approx. 80 mm (at 16X magnification) |
|
Practical field of view | φ15 mm (at 10X magnification) φ10 mm (at 16X magnification) |
|
Interpupillary adjustment range | 55 to 72 mm | |
Diopter adjustment range | -8 to +5 D | |
Slit Projector | Slit width / Shape | 0.1, 0.2, 0.8 mm / Spots (circular) |
Slit length | 1, 5, 12 mm: fixed, and 1.5 to 12 mm: continuously variable |
|
Spot size | φ1, φ5, φ12 mm and shapes of ellipse | |
Light intensity adjustment | 200 to 20,000 lux: continuously variable | |
Slit's illuminating angle | 60° : horizontal circumference | |
Light source | White LED | |
Background illumination light | White LED : 3 step switching | |
Blue illumination light | Blue LED : 3 step switching | |
Power Supply | Input : DC3.0 - 4.8 V Power consumption : Up to 3.6 VA |
|
Dimensions / Weight | 107 (W)×197 (D)×238 (H) mm / 620 g (No batteries) |
Distribution name: KOWA SL-19
